Custom Areas of Use

In addition to the Filtering options, certain objects can also have custom user-defined Areas of UseClosed An area of use is a polygon that defines the applicable extent of an object in the datasource, such as a coordinate reference system or transformation.They are defined as both a polygon and a minimum bounding rectangle in Latitude / Longitude coordinates in WGS84. associated with them.  In the Geographic Calculator, you can draw or load polygons on a map to create an area of use for particular Coordinate Systems, Datum Transformations, and Horizontal Datums.  Once the polygon is set, when a job includes either coordinate values or files located in that particular polygon, the Custom Area of Use will narrow down the available Coordinate Systems and Transformations for that conversion.

The Geographic Calculator, by default, contains a set of custom areas of use for common geographic areas. The custom areas of use included by default do not contain any active filtering of Coordinate Reference Systems. They do contain some Transformation filtering, specifically:

  • NAD27 to WGS84 in CONUS, Canada, Alaska
  • NAD27 to NAD83 in CONUS, Canada, Alaska

The administrator can modify or add to these custom areas of use and the filtering associated with them by pressing the Edit Custom Areas of Use button.

Note: The custom and the standard Areas of Use settings can be disabled entirely, by checking the boxes to Ignore Areas of Use.

Note: The Geographic Calculator includes EPSG polygons as predefined datasource Areas of Use, not as Custom areas of Use.  You can use these predefined areas of use by importing them from a polygon file, an EPSG polygon file or by selecting any of the OGP defined Areas of Use to create Areas of Use filters.

Create Custom Areas of Use

  1. Go to Options>Administrative Settings and open the Areas of Use tab.  Click the Edit Custom Areas of Use button.



  2. The Custom Areas of Use Dialog will open with World_countries.tab loaded in automatically. This file is the default file selected for use.

  3. On the Custom Areas of Use Dialog, you can use the standard navigation tools at the top of the panel to zoom in and out and pan the map view. Once you have zoomed into a particular area you can use the Create New Areas of Use tool to draw a polygon around the area you wish to define as an Area of Use. Click the button to enable the tool, then simply click around the area to draw the polygon to define the new Area of Use. Double-click to finish the polygon.

    Note: You can also go to File > Import Polygon Data or Import Custom Area of Use to import polygons and existing area of use definitions into this instance of Geographic Calculator. For more information see Import Custom Area of Use

    A Custom Area of Use file is a *.aou file from an existing Geographic Calculator workspace, or an earlier version of an envelope file may also be imported.

    You can also use the Load Area Polygon from GeoCalc tool to use a predefined polygon as a Custom Area of Use.

  4. When the polygon is closed by double-clicking, the Edit Custom Area of Use dialog will open. This will allow the user to assign this Area of Use a Name and a Priority, if desired. The area of use with the lowest priority takes the highest precedence in area of use filtering, with 0 taking precedence over 1, 2, etc.

  5. Clicking on the Set Up Filters... button will open the Set Up Custom Areas of Use Filters dialog.  Setting up a list of hidden and visible Coordinate Systems and Transformations, similar to setting general Filters, except the Filters set in this process will apply only to the particular geographic areas specified by the custom polygons.

    You may wish to mark an entire folder as Hidden. You may do so by right-clicking on the folder and selecting Hide Folder. Note that if you hide an entire folder and then attempt to un-hide objects within it by checking the Show box, the object will remain Hidden because it is inside a Hidden folder. If you want to Show the object you must first Show the folder it resides in by right-clicking on the folder and selecting Show Folder.

  6. Repeat steps 2-5 as needed to define your custom Areas of Use.

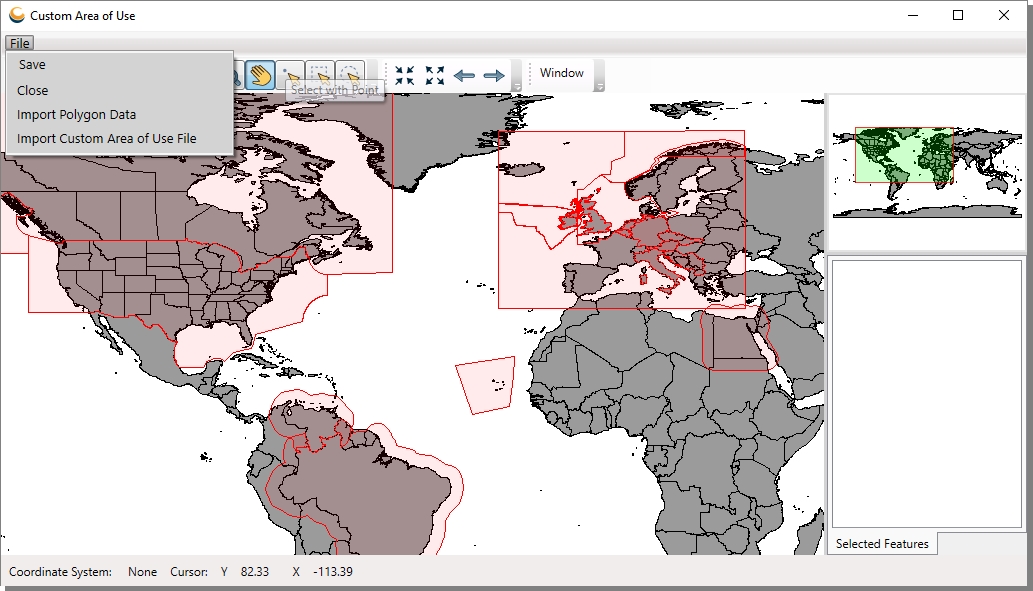

  7. When you have completed editing your custom Areas of Use go to File > Save to commit your changes to the current workspace.



    Note: In the case of Datum Transformations, transformations between your local datum and the intermediary datum (defined in the general preferences dialog) will also be accessible by the user. For complete security, either disable the intermediary or hide any transformations between your local datum and the intermediary.

  8. Once saved, these filters become a part of the Workspace.  For administrative users to lock the Workspace to any of these restrictions, see Password Access.

Import Custom Area of Use

Rather than drawing polygons by hand, it is also possible to import polygons from an existing vector file. Choose the Import Polygon Data option to import a pre-made polygon or set of polygons to the Areas of Use editor.

  1. In the Custom area or use dialog, choose Import Polygon Data from the File menu.

  2. Select the vector data file that contains the polygons. The data needs to be area features in a geodetic CRS, and they should be in WGS84.

    A dialog will ask if you would like to merge them with the current areas of use. Select yes to combine them with the existing areas.

  3. If the file contains multiple polygons, a dialog will provide options for handling the polygons.

    If the vector format contains multiple layers, select the layer that contains the polygons defining areas of use in the Layer to Import drop down.

    To automatically name the areas of use based on an attribute, check the option Use layer attribute for area of use name and select the appropriate attribute.

    If the desired priority is contained in an attribute, check the option to Use layer attribute for area of use priority and select the appropriate attribute from the dropdown. AOUs with a lower value in the priority will take precedence over higher values, with 0 being the highest priority, followed by 1.

    Geocalc Area of Use

    The bottom two options in the Import Area of Use dialog add objects to the custom datasource, rather than the custom area of use file. Follow the above steps in Import Custom Area of Use to load the polygon file.

    When you check Import as GeoCalc Area of Use Polygons, these imported objects will not display in the Custom Area of Use dialog directly after import, they will create new area of use objects in the custom datasource. To view them in the Custom Area of Use Dialog, press the Add All Custom GeoCalc AOUs button. Custom AOUs added to the GeoCalc Areas of Use will appear in purple. To view the new objects in the datasource go to Datasource > Area of Use Definitions. The new objects will be added with the polygons included, and can be referenced in object definitions.

    When importing as Geocalc Area of Use Polygons, the GC Code can come from the specified attribute, by checking the option Use Layer attribute for GeoCalc AOU Code. This code must be unique and not already used for an existing object in the datasource, or it will be ignored.
