Areas of Use Definitions

The Edit Datasource dialog allows you to add, change and delete user-defined Areas of Use, and to view all Areas of Use. Certain pre-defined Areas of Use in the base Datasource have Polygons associated with them. When viewing an existing Area of Use, a 'View Polygon' button may be displayed on the Definition panel of the editor, for use in visualizing this Polygon on a world map.

In order for an Area of Use to be associated with a coordinate system, datum or transformation, it must be part of a Usage. See Usage Definitions for more information.

Note: To create multiple area of use definitions by importing a polygon file, see Geocalc Area of Use in the Custom Area of Use Administrative Settings.

Create a new Area of Use

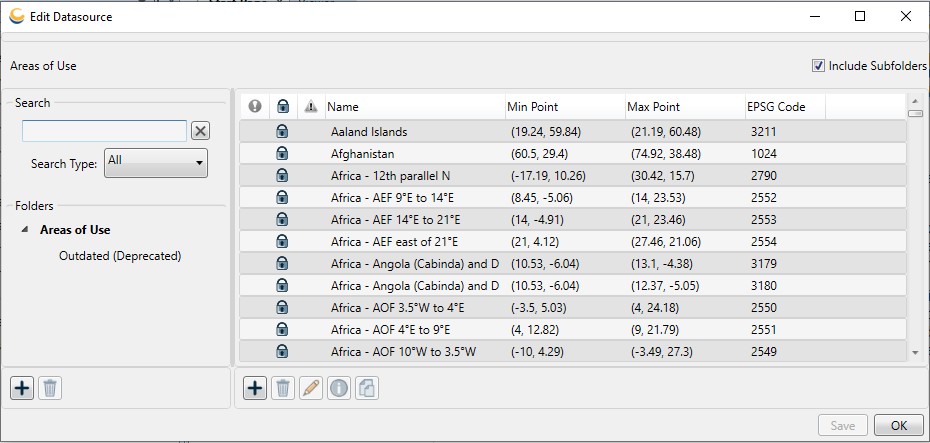

  1. Go to Datasource> Area of Use Definitions. An Edit Datasource dialog will open.

  2. In the right-hand pane, right-click and select New Object or click the Add (+) button below the pane.  A new blank Area of Use Editor dialog will open.  There are two tabs on the Area of Use Editor:

    Identification

    The Identification tab is used to name the object and associate identifying codes with it (if applicable).

    • The Name field is where you need to enter the appropriate name for the definition; the name entered is the name that will be used to select the object in the main list.
    • The Remarks field can be used to add notes on a definition and is optional.
    • The Identifiers list may be used to add identifying codes for an object that may be referenced in other databases.  The GC code is a unique identifier assigned by the Calculator which cannot be altered.  To enter additional codes, right-click in the space below.
    • Deprecated may be checked to indicate an object is no longer being used, either because there are errors in the definition, or because it has been superseded by another object. If this is checked, you will be provided with a date picker to set the date on which the object was deprecated. This will default to the current date.

    Definition

    The Definition tab is used to define the object's parameters.  For the Area of Use you must select whether or not there are extents points, and if so, what point style they are in, and what the values of the min and max points are.

  3. Click OK to close the Area of Use Editor.

  4. To save the definition permanently, click the Save button on the right hand side of the Edit Datasource dialog.

  5. Click OK to close the Edit Datasource dialog, your new Area of Use definition is complete and may be used within the Calculator.

Change an existing Area of Use

  1. Go to Datasource>Area of Definitions. An Edit Datasource dialog will open.

  2. Select the object from the Areas of Use list.

    Note: You can only edit objects shown in blue.

  3. Double click the object you want to edit to open its definition.

  4. Change any of the values and press the OK button.

  5. To save the definition permanently, click the Save button on the right hand side of the Edit Datasource dialog.

Delete an existing Area of Use

  1. Go to Datasource>Area of Use Definitions. An Edit Datasource dialog will open.

  2. Select the unit from the Area of Use list.

    Note: You can only delete objects shown in blue. If you want to hide other objects from the datasource view, see Datasource Filters.

  3. Select the object, right-click it and select Delete Object or click the Trash Can button below the object list.

  4. To save the deletion permanently, click the Save button on the right hand side of the Edit Datasource dialog.
