Using the Path Profile Tool with Lidar Data

This tool requires Global Mapper Pro.

If Global Mapper Pro is registered, the Lidar Toolbar will populate on the Path Profile/ Line of Sight window when there is Lidar data loaded.

Tools for editing lidar from Path Profile

To reclassify points using the Path Profile/ LOS tool and Lidar Manual Classification toolbar, select the points to reclassify within the Path Profile/ Line of Sight window.

Points can be selected with various selection tools:

Select Lidar - Drag a box to select lidar points.

Select Lidar by Polygon - Left click to trace a polygon around a set of points. Right click to complete the selection.

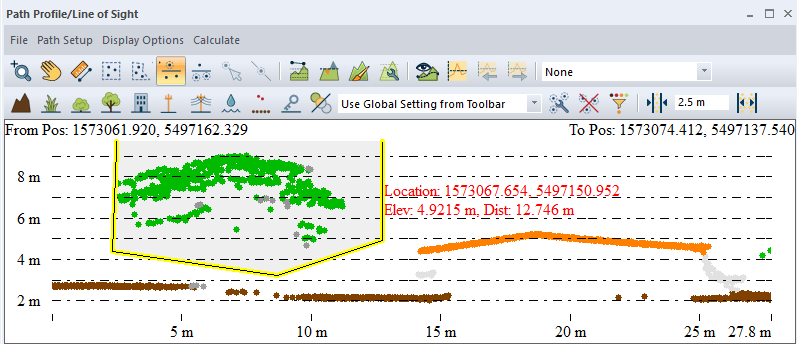

Select Lidar Above Line - Left-click on the profile window to place points, then right-click to complete the line. All points above the line (in the shaded area) will be selected.

Select Lidar Below Line - Left-click on the profile window to place points, then right-click to complete the line. All points below the line (in the shaded area) will be selected.

Select the new class button on the Lidar Manual Classification toolbar to reclassify the selected points.

A window will pop-up verifying that selected points are to be reclassified to the indicated class. To finish reclassification, click the 'Yes' button.

Keyboard Shortcuts: keys 0 - 9 are shortcuts to automatically reclassify points selected in the profile window.

0 - Created, never classified
1 - Unclassified
2 - Ground
3 - Low Vegetation
4 - Medium Vegetation
5 - High Vegetation
6 - Building
7 - Low Point (Noise)
8 - Model Key-point (mass point)
9 - Water

Color Mode Drop Down

The Lidar toolbar Path Profile/ Line of Sight window also features the drop down menu to select the display characteristics of the point cloud.

By default, this will be set to Use Global Setting from Toolbar, which copies the Lidar point display characteristics from the primary Global Mapper interface set in the Lidar Toolbar.

In the Path Profile window, the color settings may be changed in just the context of the Path Profile window. For more information on the available draw modes, see Lidar Draw Mode

Delete Selected

Delete the selected Lidar points.

Edit Selected

Edit the selected Lidar points. This allows for specifying Lidar classes or properties that are not available in the toolbar buttons or keyboard shortcuts.
